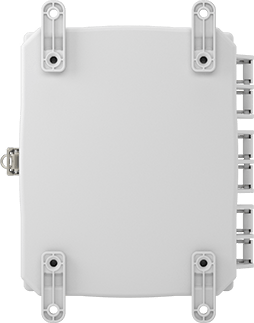

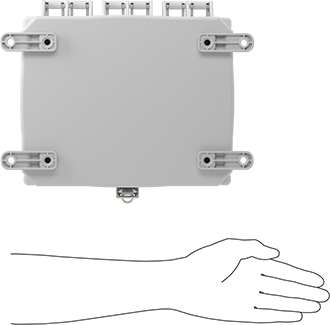

McMaster 5376K428 Versa-Mount Polycarbonate Washdown Enclosure Corrosion-Resistant, White, Quick-Release, 10-9/16" X5-5/16"
UPC: | Harmonization / Schedule B : 3926.90.9988
Country of Origin: United States | Shipping Weight: 3.5 lbs
UPC: | Harmonization / Schedule B : 3926.90.9988
Country of Origin: United States | Shipping Weight: 3.5 lbs
McMaster 5376K428 Versa-Mount Polycarbonate Washdown Enclosure Corrosion-Resistant, White, Quick-Release, 10-9/16" X5-5/16"
Mount panels your way. Whether you're sticking with the basics or maximizing accessibility, these enclosures give you the flexibility you need. Mount panels directly to the back of the enclosure for a classic setup. Add panel mounts to position panels at any depth, creating space behind them for wiring. Or choose swing-out panels that pivot outward to access wiring behind the panel without completely removing it. All of these enclosures safeguard motor controls, power supplies, and wiring from a range of drips to drenches. They have a gasket that locks out moisture and dust to keep electrical components dry and contaminant-free.
Hinged Cover—The cover swings open for fast, frequent access and remains attached to prevent drops or loss.
Impact-Resistant Polycarbonate—Our toughest plastic enclosures withstand forceful blows that would crack other plastics—even dropping a bowling ball on them won’t cause damage. They also resist oils, cleaners, and mild acids.
|
Hinge Location
|
Side |
|
Cover Attachment Style
|
Hinged |
|
Material
|
Polycarbonate |
|
Width
|
8 1/2" |
|
Height
|
11" |
|
Depth
|
5 1/2" |
|
Cover Closure Method
|
Quick-Release Latch |
|
With Knockouts
|
No |
|
External Mount Type
|
Bracket |
|
Color
|
White |
|
Certification
|
UL Listed, C-UL Listed, CE Marked |
|
Closure Latch Material
|
Stainless Steel |
|
Cover Clarity
|
Opaque |
|
Cover Material
|
Polycarbonate |
|
Enclosure Rating
|
NEMA 3S, NEMA 4X, NEMA 13, IP66 |
|
Environment
|
Corrosive, Dusty, Oily, Outdoor, Washdown, Wet |
|
Features
|
Gasketed Cover, Internal Mounting Bosses |
|
Flammability Rating
|
UL 94 5VA |
|
For Maximum Padlock Shackle Diameter
|
3/8" |
|
Hinge Material
|
Polycarbonate |
|
Includes
|
Mounting Hardware |
|

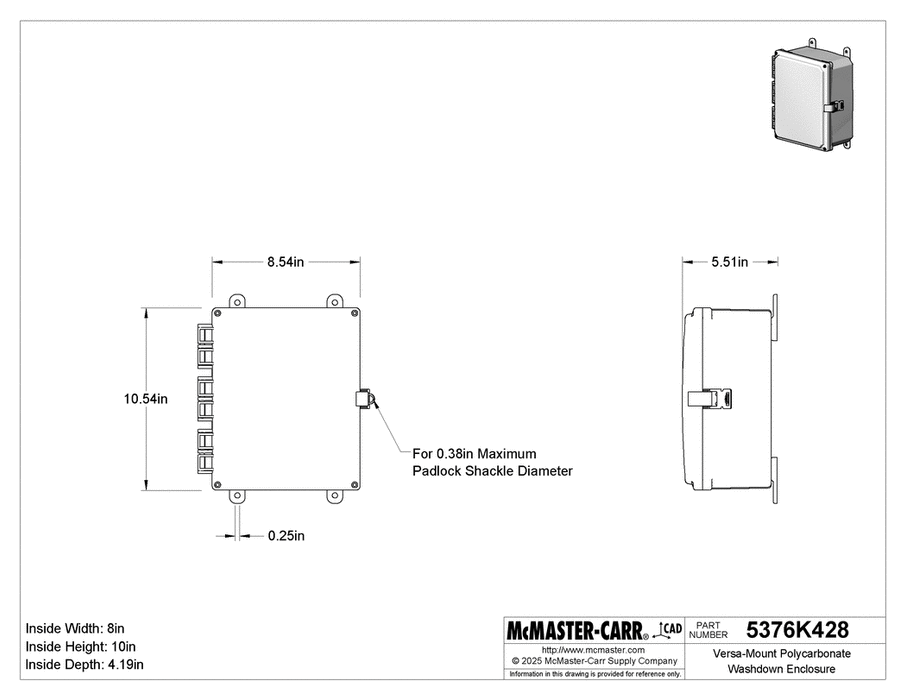

Inside
|
|
|
Width
|
8" |
|
Height
|
10" |
|
Depth
|
4 3/16" |
|
Mounting Hole Diameter
|
1/4" |
|
Number of Doors
|
1 |
|
Number of Mounting Holes
|
4 |
|
Padlock Hasp Material
|
Stainless Steel |
|
Performance
|
Corrosion Resistant, Dust Tight, Impact Resistant, Lightweight, Nonconductive, Oil Resistant, Padlockable, Quick Access, Versa Panel, Watertight |
|
Specifications Met
|
ASTM D648, ASTM D790, UL 746C f1 |
|
UL File Number
|
E207562, E229365 |
|
Country of Origin
|
United States |
|
DFARS Compliance
|
Specialty Metals COTS-Exempt |
|
Export Control Classification Number (ECCN)
|
EAR99 |
|
REACH Compliance
|
Not Compliant |
|
RoHS Compliance
|
RoHS 3 (2015/863/EU) Compliant with Exemptions |
|
RoHS Exemptions
|
6(c) |
|
Schedule B Number
|
392690.9988 |
|
U.S.–Mexico–Canada Agreement (USMCA) Qualifying
|
Yes |
