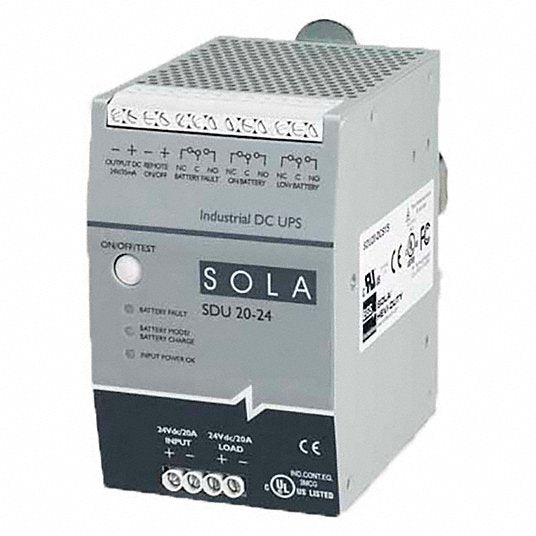

SOLAHD SDU2024B UPS Single Phase, 480 VA Power Rating, 23 V DC_30 V DC Input, 23 V DC_30 V DC Output

UPS, Standby, Power Rating 480 VA, Wattage 480 W, Input Voltage 22.5V DC, 30V DC, Output Voltage 22.5V DC, 30V DC, Backup Time (Half/Full Load) 14 min/4 min, Mounting DIN Rail; Chassis, Outlet Type Hardwired, Width 77 mm, Cord Length No Cord, Display Type No Display, Single Phase, Ports Screw Terminals, Special Features Battery Module Required

UPS Type	Standby
Power Rating	480VA
Mounting	DIN Rail/Chassis
Wattage	480 W
Input Voltage	22.5V DC
Output Voltage	22.5V DC
Backup Time (Half/Full Load)	14 min/4 min
Outlet Type	Hardwired
Medical Grade	No
Number of Outlets	0
For Use With	SolaHD SDU DC Series
Ports	Screw Terminals
Special Features	Battery Module Required
Battery Type	VRLA
NEMA Receptacle Configuration	No Configuration
Housing Material	Metal
Standards	UL, CSA, CE
Hz	50/60 Hz
Display Type	No Display
Phase	Single
Audible Noise	< 40dBA (beyond 1 meter from surface)
SDU 10-24 Model	240 VA, 24V/10A
Operating Temperature	-20°C to +50°C
Output Voltage Range	22.5 - 30 Vdc
SDU 20-24 Model	480 VA, 24V/20A
Input voltage range	22.5-30 Vdc
Typical Back-up Time (minutes, full/half load)	10 Amp: 14; 20 Amps: 4
Nominal Voltage Range	230 Vac
Visible Indicator Light Conditions	Overload
External Battery Compatible	External Battery Pack Compatible
Operating Temperature - Maximum	122 Degrees F
Operating Temperature - Minimum	-4 Degrees F
Output Ports Included	Screw Terminals
Includes Battery	Battery Included
Receptacle Configuration	Hardwired
Input Current - Maximum	20 A
Battery Chemistry	Valve Regulated Lead Acid
Number of Outlets - Surge Only	0
Audible Alarm Conditions	Overload, Replace Battery
Frequency	50/60 Hz
