| Voltage |
120V AC |
| Phase |
Single |
| Weight |
24 lb |
| Displacement |
10 cfm |
| Oil Capacity |
8 oz |

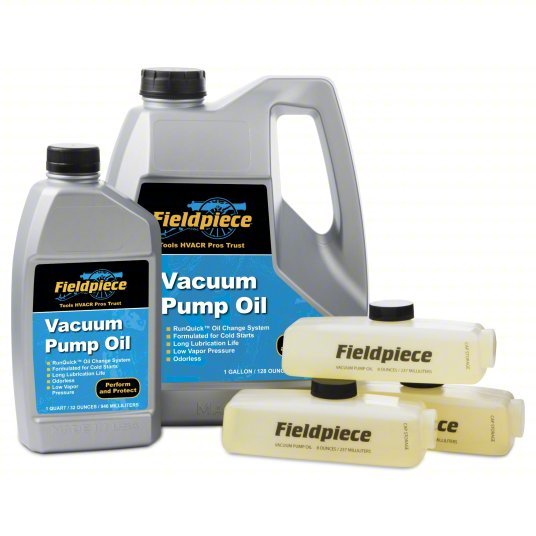

| Includes |
(2) 8 oz Oil |
| Body Material |
Aluminum |
| Application |
Industrial |
| Motor Type |
Brushless DC |
| Drive Type |
Direct Drive |
| Includes Vacuum Gauge |
Gauge Not Included |
| Drain Port Connection Thread Direction |
Right-Hand |
| A2L Compatibility |
A2L Compatible |

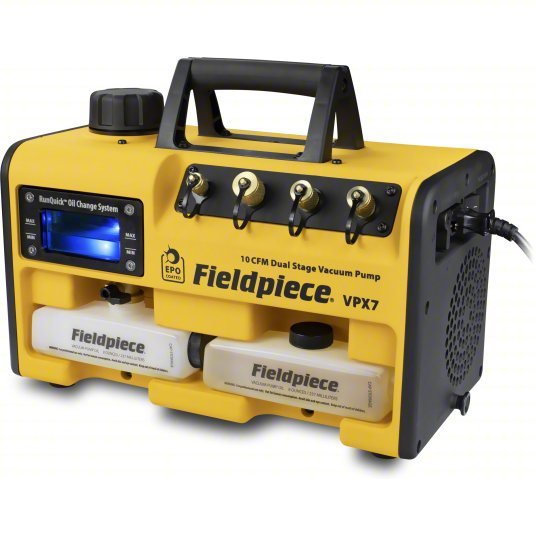

| Product Type |
Vacuum Pump |
| Warranty |
1 yr |
| Includes Hoist Clip |
Hoist Clip Not Included |
| Reservoir Port Connection Thread Direction |
Right-Hand |
| Includes Isolation Valve |
Isolation Valve Not Included |
| For Refrigerant Type |
R-11, R-113, R-114, R-115, R-116, R-12, R-123, R-1233ZD, R-1234YF, R-1234ZE, R-124, R-125, R-13, R-134A, R-152A, R-22, R-227EA, R-23, R-236FA, R-245FA, R-32, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407C, R-407F, R-407H, R-408A, R-409A, R-410A, R-413A, R-414A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-428A, R-434A, R-437A, R-438A, R-448A, R-449A, R-450A, R-452A, R-452B, R-453A, R-454A, R-454B, R-454C, R-455A, R-458A, R-466A, R-470A, R-470B, R-500, R-501, R-502, R-503, R-507A, R-508B, R-513A, R-514A, R-744 |
| Includes Oil Mist Filter |
Oil Mist Filter Not Included |
| Motor Speed |
2,500 RPM |
| Inlet 2 Port Connection Thread Direction |
Right-Hand |
| Inlet 1 Port Connection Thread Direction |
Right-Hand |
| Inlet 3 Port Connection Thread Direction |
Right-Hand |
| Inlet 3 Port Connection Gender |
Male |
| Inlet 3 Port Connection Type |
SAE |
| Inlet 1 Port Connection Type |
SAE |
| Inlet 1 Port Connection Gender |
Male |
| Ultimate Vacuum |
15 micron |
| Power Source |
Plug-In |
| Operating Temperature - Maximum |
122 Degrees F |
| Calibration Certificate Type |
Traceable without data |
| Plug Configuration |
5-15P |
| Inlet 2 Port Connection Type |
SAE |
| Frequency |
60 Hz |
| Current |
6 A |
| Includes Gas Ballast |
Gas Ballast Included |
| Includes Sightglass |
Sightglass Included |
| Number of Stages |
Two-Stage |
| Horsepower |
3/4 hp |
| Operating Temperature - Minimum |
30 Degrees F |
| Standards |
CE Listed, CSA 213, CSA 68, UKCA, UL 121201, UL 1450, WEEE |
| Number of Inlet Ports |
3 |
| Inlet 2 Port Connection Gender |
Male |
