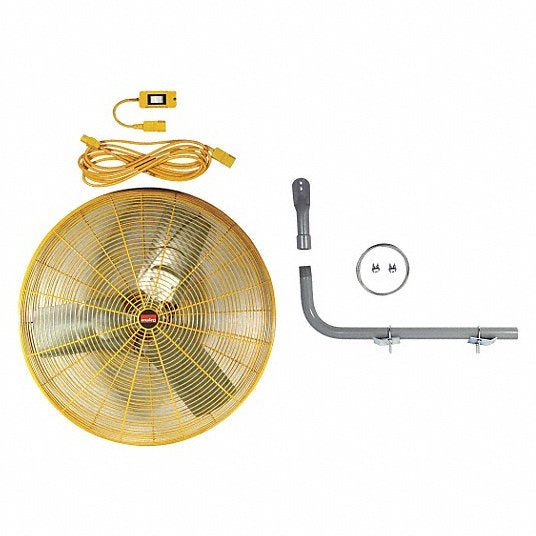

KVM Tools KV7DJ32 High-Visibility Industrial Fan 30 in Blade Dia, 8,712/9,375 cfm, 115V AC, 1/2 hp Motor HP

High-Visibility Industrial Fan, Blade Dia. 30 in, Stationary, Non-Oscillating, 2 Speeds, Voltage 115V AC, 1 Phase, CFM High 9375, CFM Low 8712, Air Velocity @ 20 Ft. 615/330 fpm, Motor HP 1/2 hp, Motor RPM 1075/600, Operating Amps 3.7/3.12, Fan Mounting Location I-Beam, Post, Fan Accessory Style High Visibility, Fan RPM 1075/750, Sound Level 77dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Drive Type Direct Drive, Outside Dia. 33 In., Height 33 in, Width 33 in, Max. Depth 14-1/4 In.

Oscillation	Non-Oscillating
Number of Speeds	2
Voltage	115V
Phase	1
Motor HP	1/2
Air Flow	8,712/9,375 cfm
Drive Type	Direct Drive
Blade Material	Mill Finish Aluminum
Sound Level	77 dBA
Item	High Visibility Industrial Fan
Thermal Protection	Automatic
Number of Blades	3
Environmental Applications	Industrial
Motor RPM	1,075/750 RPM
Assembled	Yes
Air Velocity @ 60 Ft.	140 fpm
Air Velocity @ 10 Ft.	865/465 fpm
Motor Enclosure	Totally Enclosed Air Over
Air Velocity @ 20 Ft.	615/330 fpm
Hz	60
Max. Ambient Temp.	104 Degrees F
Guard Material	Steel
Housing Material	Steel
Air Velocity @ 40 Ft.	320 fpm
Application	Spot Cooling and People Cooling
Motor Insulation	Class B
Bearing Type	Ball
Mobile/Stationary	Stationary
Standards	UL, cUL, OSHA
Wire Guard Finish	Polyester Powder Coated
CFM High	9375
Fan Mounting Location	Ceiling, IBeam, Pedestal, Wall
Includes	13 ft. Extension Cord, 3 Position Drop Cord Switch, (1) 1ZCP8 I-Beam Mounting Bracket
Fan Style	High Visibility
CFM Low	8712
Fan Accessory Style	High Visibility
Assembly Required	No
RPM	1075/750
Fan Housing Material	Steel
Wheeled Base	Stationary
Amps	3.7/3.12
Material	Steel
Color	Yellow
Motor hp	1/2 hp
