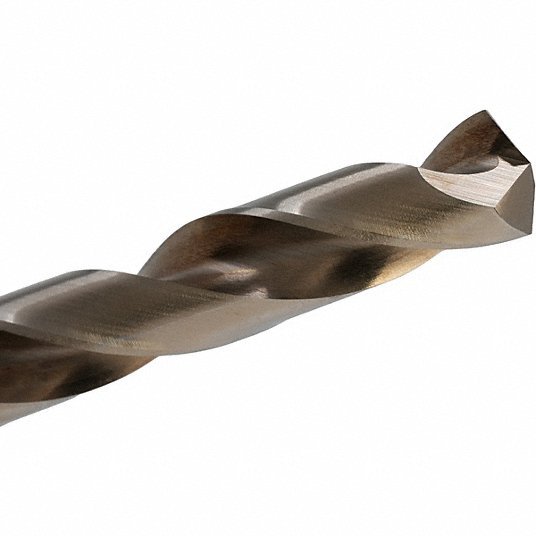

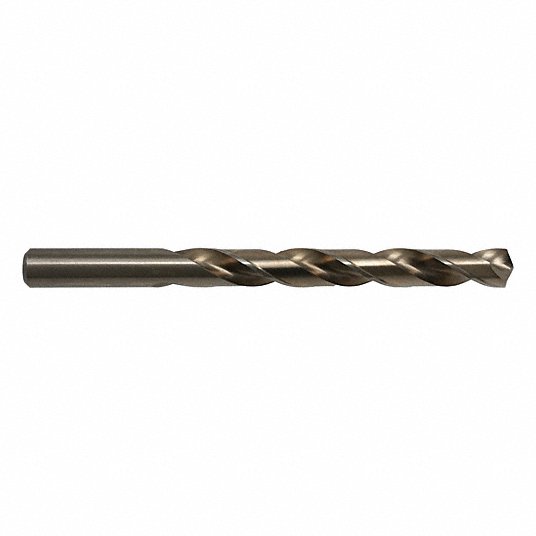

Chicago-Latrobe 46616 Jobber Length Drill Bit 1/4 in Drill Bit Size, 2-3/4 in Flute Lg, 4 in Overall Lg

Jobber Length Drill Bit, Drill Bit Size 1/4 in, Drill Bit Point Angle 135 Degrees , Cobalt, Straw/Bronze, Decimal Equivalent 0.2500, Fractional Inch, Drill Bit Point Type Split Point, Non-Coolant Through, Number of Coolant Holes 0

Drill Bit Point Angle	135 Degrees
Number of Flutes	2
Material - Machining	Cobalt
Cutting Direction	Right Hand
Finish - Machining	Straw/Bronze
Shank Type - Machining	Straight
List Number	550
Number of Pieces	1
Decimal Equivalent	0.2500
Drill Bit Grouping	Drill Bit
Application	For Alloy, Stainless And Tool Steels And Titanium
Standards	NAS 907 Type J
Flute Type	Spiral
Measurement System	Fractional Inch
Drill Style	Jobber Drill
Coolant Fed	Non-Coolant Through
Helix Angle	21 Degrees to 34 Degrees
Primary Material Application	Hi-Temp Alloy, Stainless Steel, Steel
Primary Material Application ISO Code	M, P, S
Material Grade - Machining	M42
Aircraft Drill	Yes
Spiral Direction	Right Hand
Drill Bit Point Type	Split Point
Series	550
Web Thinning	Thinned
Number of Coolant Holes	0
Sheeter Drill	No
