McMaster 23065A674 Plug Gauge Size 0.0750 in, Class Z Plug No - Go Gauge - ZenverasKV23065A674

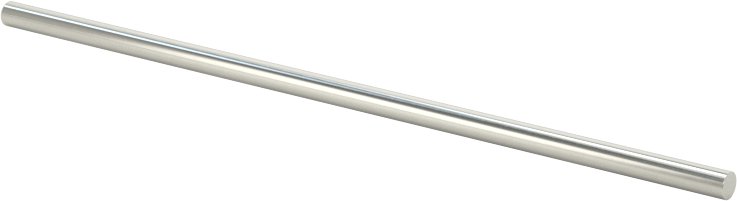

McMaster 23065A674 Plug Gauge Size 0.0750 in, Class Z Plug No-Go Gauge

UPC: | Harmonization / Schedule B : 9031.80.8080

Country of Origin: | Shipping Weight:

$11.3 - $11.3
$11.3
$11.3 - $11.3
$11.3

These Class Z no-go gauges help you check the maximum hole diameter. Commonly known as pin gauges, use them to measure hole size and depth, check hole location and distance, and set micrometers. All come with a certificate of accuracy traceable to NIST that states they've passed a test for accuracy.

If a no-go gauge is unable to enter the hole and a go gauge can, the hole is within tolerance.

Gauge Type

No-Go
Class

Z
Plug Gauge Size

0.0750"
Choose a Plug Gauge Size

0.0610" to 0.2500"
Increment

0.0005"
Plug Gauge Tolerance

-0.0001" to 0"
Length

2"
Surface Smoothness (RMS)

8 microinch
Hardness

Rockwell C60
Material

Tool Steel
Certification

Accuracy Certificate Traceable to NIST
Plug Gauge Size

0.0750 in.
RoHS

RoHS 3 (2015/863/EU) Compliant
REACH

Not Compliant
DFARS

Specialty Metals COTS-Exempt
Country of Origin

United States
USMCA Qualifying

No
Schedule B

903180.8080
ECCN

EAR99
