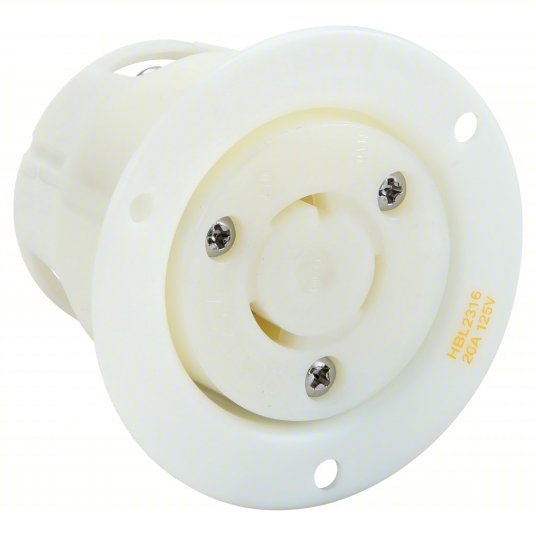

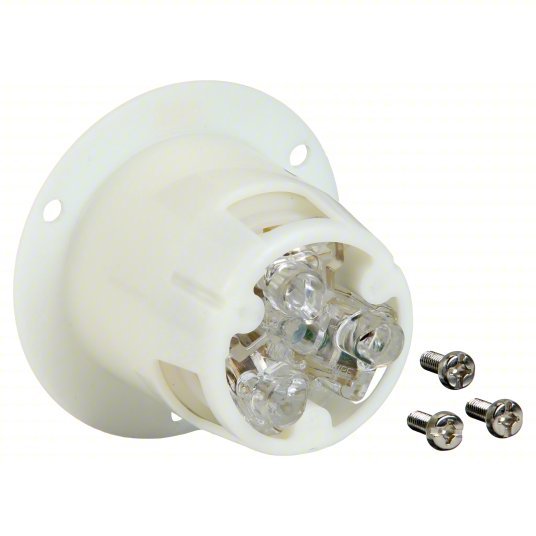

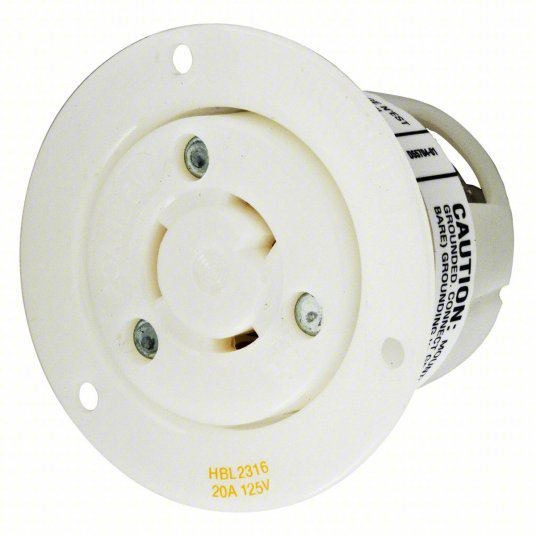

| NEMA Configuration |
L5-20 |
| Voltage |
125V AC |
| Amps |
20 |
| Color |
White |
| Number of Poles |
2 |
| Number of Wires |
3 |
| Phase |
Single |
| Shrouded / Non-Shrouded |
Non-Shrouded |
| Wiring Style |
Standard |
| IP Rating |
IP20 |
| Mounting Type |
Flush Mount |
| HP |
1.0 |
| Grade |
Industrial |
| Material |
Thermoplastic Elastomer |
| Special Features |
With Cover |
| NEMA Rating |
12, 4, 4X |
| Standards |
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Includes Mounting Hardware |
Yes |
| Includes |
Mounting Screws |
| Minimum Operating Temperature |
-40 Degrees C |
| Maximum Operating Temperature |
75 Degrees C |
| Wire Connection Type |
Screw Terminals |
| Market |
Industrial |
| Features |
Accepts Slotted, Phillips, and Robertson Head Drivers |
| For Location |
Indoor |
| Contact Material |
Brass |
| Shrouded |
No |
| NEMA Enclosure Rating |
1 |
| Housing Material |
Nylon |
| Number of Gangs |
1 |
| Voltage Rating |
125V AC |
| AFCI |
No |
| UL 94 Flammability Rating |
HB |
| Current Rating |
20 A |
| Mount Type |
Flush |
| Housing Color |
White |
| Polarized |
Yes |
| Resistance Properties |
Impact Resistant |
| Flange Type |
Flanged |
| Cover Type |
No Cover |
| Horsepower Rating |
1 hp |
| NEMA Receptacle Configuration |
L5-20R |
| Connection Orientation |
Straight |
| For Environment |
Dry |
| Flange Shape |
Round |
| Grounding |
Grounded |
| Lock Type |
Twist-lock |
| Flammability |
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Temp. Rise |
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations |
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Operating Temp. |
Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Weight (Lbs.) |
0.25 |
| Spring Material |
Brass |
| Flange Material |
Natural White Nylon |
| Industry Standard(s) |
Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Environmental Conditions |
Indoor Dry Unless Protected By Additional Means |
| Operating Temperature |
Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name |
Hubbell Wiring Device-Kellems |
| Type |
Flanged Receptacle |
| Material - Mounting Hardware |
Screw Mounting |
| Horsepower - Maximum |
1 |
| Connectivity |
Back Wired Screw Terminals |
| Amperage Rating |
20 A |
| Current / Amperage Rating |
20 A |
| Performance |
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Application |
Insulgrip |
| Dielectric Strength |
Withstands 2,000V minimum |
| Voltage Rating Description |
125 VAC |
| Item Type |
20A Insulgrip® Flanged Receptacle |
