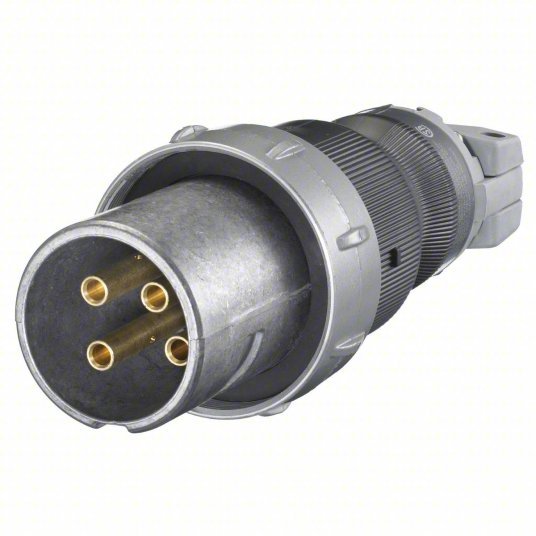

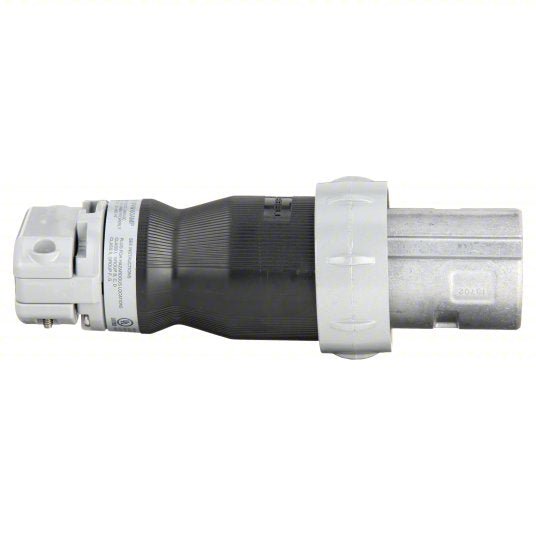

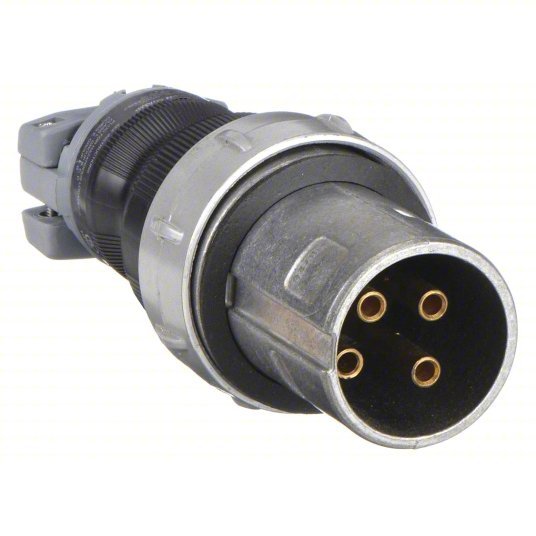

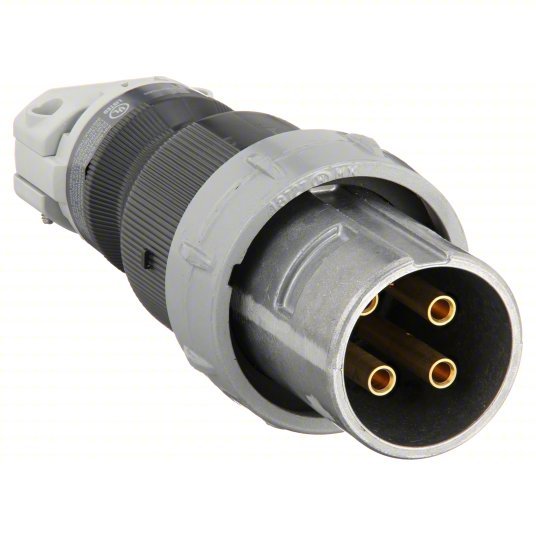

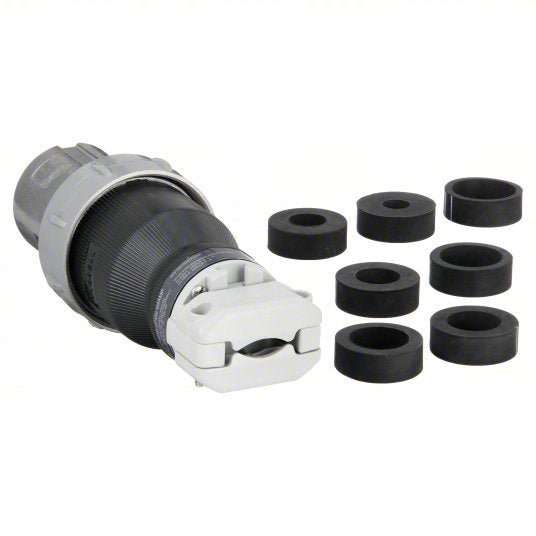

Hubbell HBL460PS2W Pin and Sleeve Plug, 3P, 4W, 60A, 600VAC - ZenverasKV5HJ29

Hubbell HBL460PS2W Pin and Sleeve Plug, 3P, 4W, 60A, 600VAC

UPC: 783585010601 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: | Shipping Weight:

$420.99 - $420.99
$420.99
$420.99 - $420.99
$420.99
Type 4X Pin and Sleeve Plug, Current Rating 60 A, Housing Color Black, Gray, IP Rating Not Rated, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, For Maximum Cable Diameter 1.45 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Grounding Style Style 2, Housing Material Polybutylene Terephthalate, Maximum Wire Size 4 AWG, Minimum Wire Size 6 AWG
Item - Plugs and Receptacles Watertight Pin and Sleeve Plug
Body Material - Pin and Sleeve Valox 357 Housing and Aluminum Shroud
Amps - Plugs and Receptacles 60
Voltage - Plugs and Receptacles 600V AC/250V DC
Color - Plugs and Receptacles Gray
Number of Poles 3
Number of Wires 4
Phase - Electrical 3
Switch Rated No
Grounding Style Style 2
Item Type 4X Pin and Sleeve Plug
Amps 60
Voltage 600VAC/250VDC
Phase Three
Body Material Valox 357 Housing and Aluminum Shroud
Features All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal
Color Gray
Standards CSA Certified C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed
Cap Type No Cap or Cover
NEMA Enclosure Rating 4X
Minimum Operating Temperature -40 Degrees C
Voltage Rating 250V DC, 600V AC
Power Indicating Light No
Compatible with Series Insulgrip
Wire Connection Type Screw Terminals
Reverse Service No
Resistance Properties Impact Resistant, Moisture Resistant, Watertight
UL 94 Flammability Rating V-0
Current Rating 60 A
Pin & Sleeve Standards CSA Certifications, UL 1682, UL Listed
Connection Orientation Straight
Maximum Operating Temperature 75 Degrees C
IP Rating Not Rated
Shrouded Yes
Housing Material Non-Metallic
Grounding Grounded
Housing Color Black, Gray
Hub Style Standard
Mounting Box Stainless Steel (300 Series)
Max. Voltage 600V
Pin & Sleeve Standards` UL 1682
