Hubbell VP6485 Pin & Slve Plug, 60A, 4P, 3W, 600VAC/250VDC - ZenverasKV5HJ62

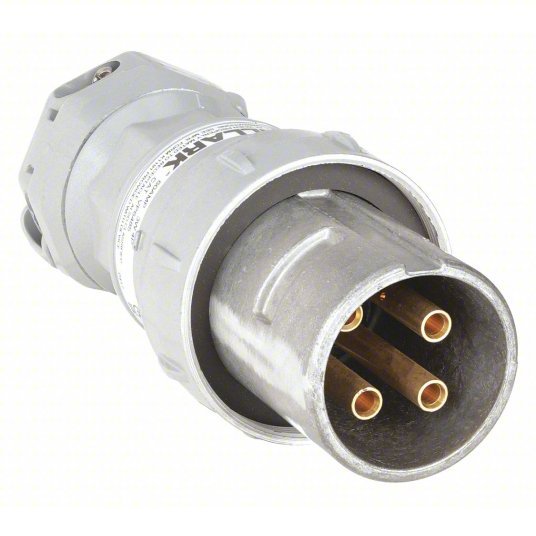

Hubbell VP6485 Pin & Slve Plug, 60A, 4P, 3W, 600VAC/250VDC

UPC: 783936834481 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: United States | Shipping Weight: 3.35 lbs

$384.5 - $384.5
$384.5
$384.5 - $384.5
$384.5
Pin and Sleeve Plug, Current Rating 60 A, Hazardous Location Specification Class I, Div 1 and 2, Group A, B, C, D, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating Not Rated, Number of Poles 3, Number of Wires 3, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type Not Applicable, Connection Orientation Straight, Face Diameter 2.25 in, Grounding Grounded, Grounding Style Style 2, Housing Material Copper-Free Aluminum, Maximum Wire Size 2 AWG
Amps - Plugs and Receptacles 60 A
Number of Poles 3
Number of Wires 3
Switch Rated No
Grounding Style Style 2
Finish Epoxy Polyester
Standards CSA Certified LR111846, UL E10757
Voltage 600V AC/250V DC
Amps 60 A
NEMA Rating 4x
Item Pin and Sleeve Plug
Material Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Features Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
Phase Three
For Location Indoor, Outdoor
Shrouded Yes
Wire Connection Type Screw Terminals
IP Rating Not Rated
Connection Orientation Straight
Housing Material Metallic
Current Rating 60 A
Reverse Service No
Hazardous Location Specification Class I, Div 1 and 2, Group A, B, C, D
Housing Material Finish Baked Powder Epoxy/Polyester Coated
Power Indicating Light No
Horsepower Rating Not Applicable
Housing Color Gray
Grounding Grounded
NEMA Enclosure Rating 4X
Market Industrial
Voltage Rating 250V DC, 600V AC
Cap Type Not Applicable
For Environment Cold, Corrosive, Hazardous Location, Marine, Wet
Type Pin & Sleeve
Hz 50-400 Hz
Pin & Sleeve Standards CSA Certifications, UL Listed
Application Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Amperage Rating 60 A
Style Style II
Finish Type Baked Powder Epoxy/Polyester Finish
Series VersaMate
Grommet Range 0.65-1.50
Frequency Rating 50-400 Hz
