McMaster 6174K67 Crossbar Induction Bearing Heater for 15 - 3/4" OD 4 - 3/4" Wide Bearing - ZenverasKV6174K67

McMaster 6174K67 Crossbar Induction Bearing Heater for 15-3/4" OD 4-3/4" Wide Bearing

UPC: | Harmonization / Schedule B : 8514.40.0000

Country of Origin: Netherlands | Shipping Weight: 53 lbs

$1476.03 - $1476.03
$1476.03
$1476.03 - $1476.03
$1476.03

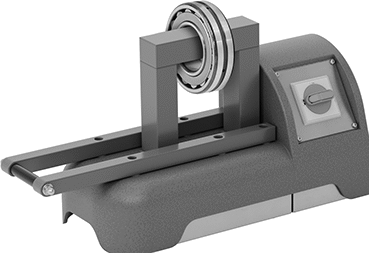

Heat bearings much more quickly and uniformly than cone and hot-plate heaters. These heaters use magnetic induction to heat but do not magnetize parts. Slide the bearing onto the crossbar and flip the switch to heat the bearing to 250° F. Heaters accommodate a range of IDs. For the fastest heating, use the largest crossbar that fits through your bearing. Heaters can also be used for demagnetizing.

Mobility

Stationary
Heater Type

Crossbar
Heating Method

Induction
For Bearing
Minimum ID

1"
Maximum ID

10 1/2"
Maximum OD

15 3/4"
Maximum Width

4 3/4"
Maximum Temperature

250° F
Heating Time

2 min. to 20 min.
Crossbar Ht. × Crossbar Wd.

13/16" × 13/16", 1 9/16" × 1 9/16"
Voltage

120V AC
Width

9"
Height

10 3/4"
Heater Material

Steel
NEMA Style

5-15
Electrical Connection Component

Plug
Control Type

On/Off Switch
Cord Length

6 ft.
Crossbar Shape

Square
Electrical Connection

Straight Blade
Number of Crossbars Included

2
Plug Number of Blades

3
Power Source

Electric
Country of Origin

Netherlands
DFARS Compliance

Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)

EAR99
REACH Compliance

REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance

RoHS 3 (2015/863/EU) Compliant
Schedule B Number

851440.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying

No
